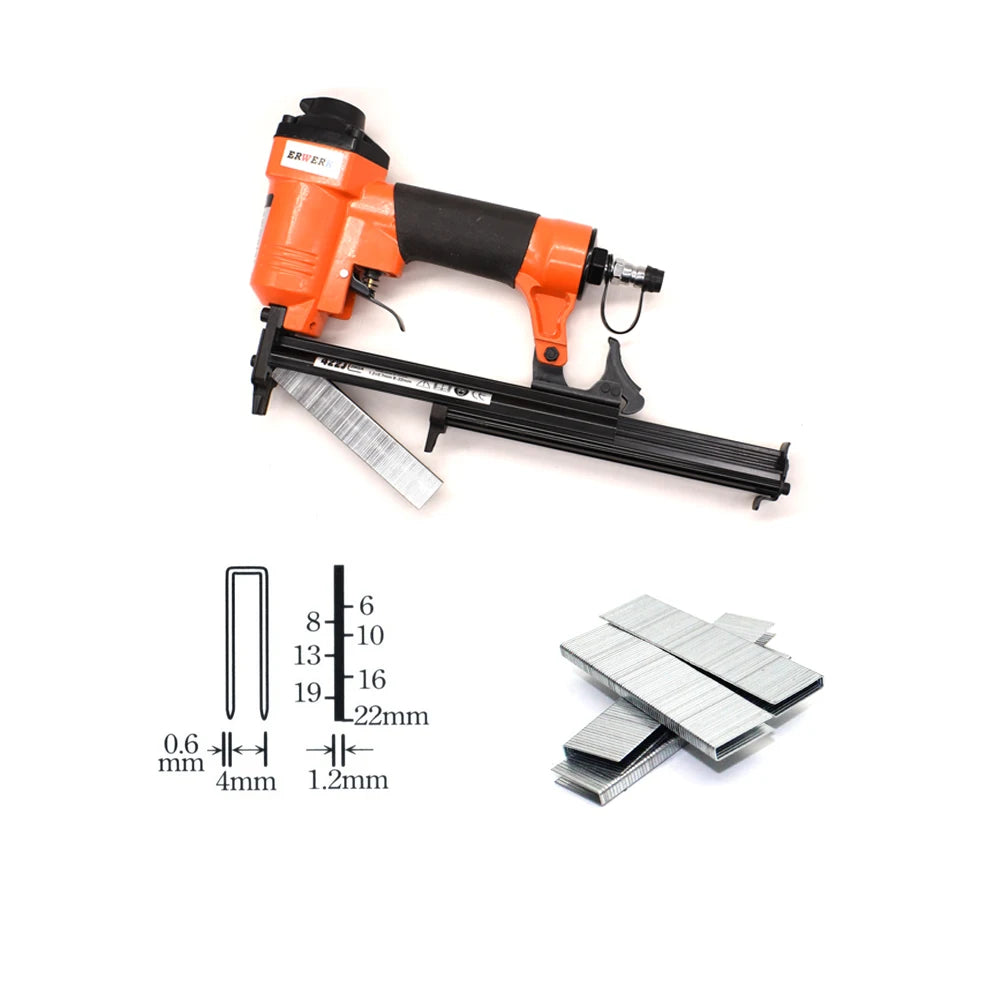

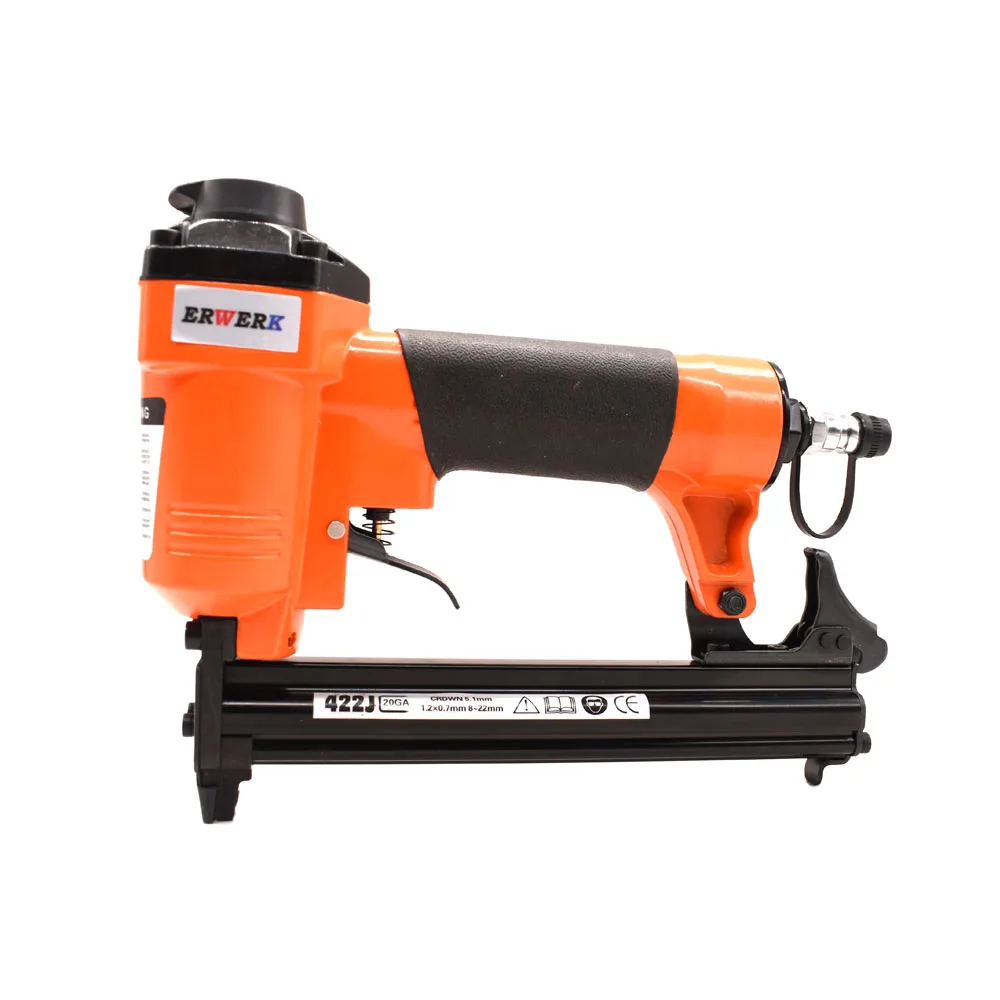

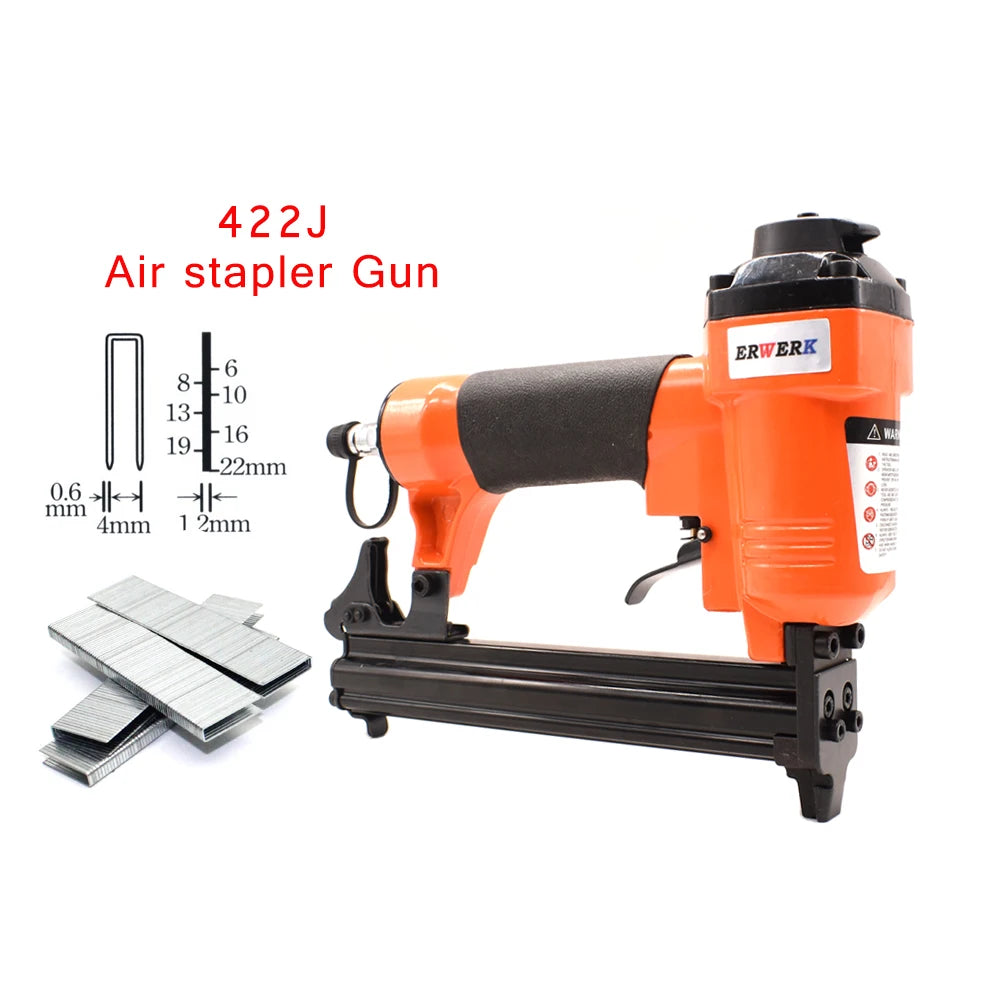

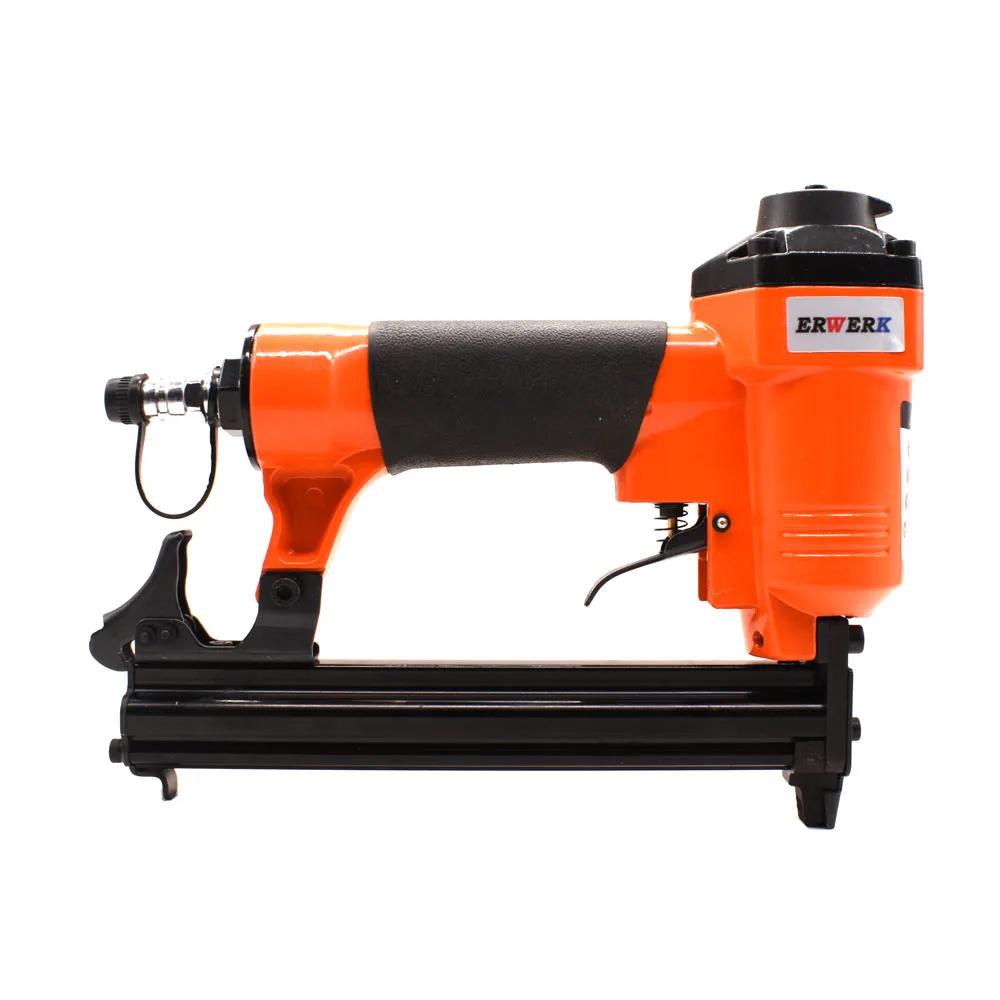

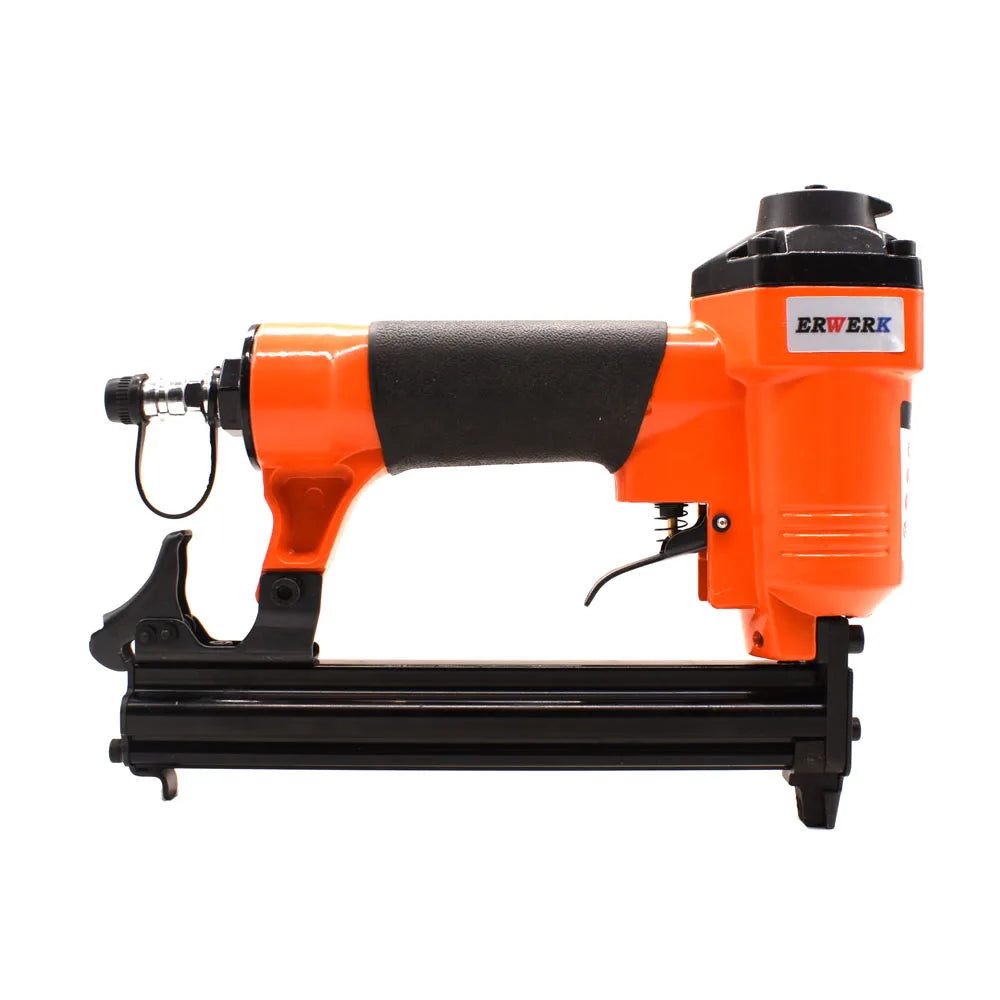

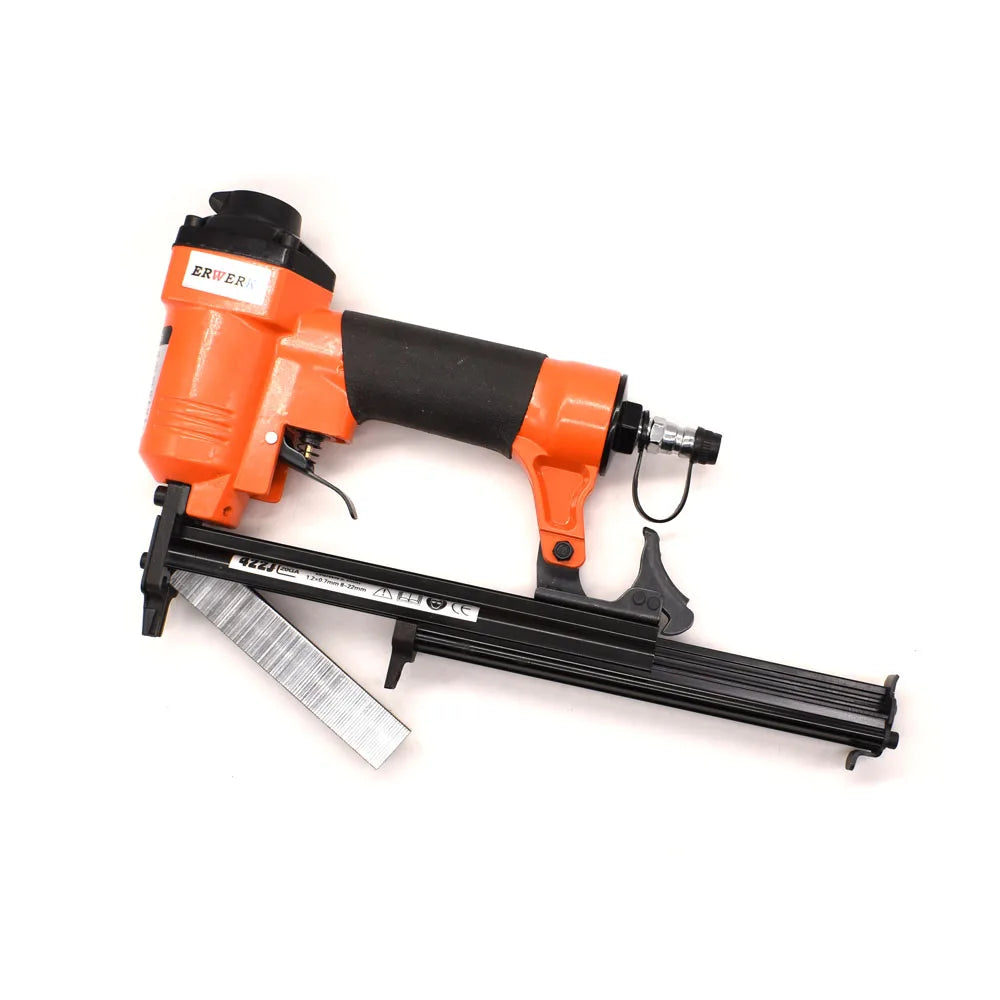

422J Pneumatic Stapler

1.Model of tool ：422J

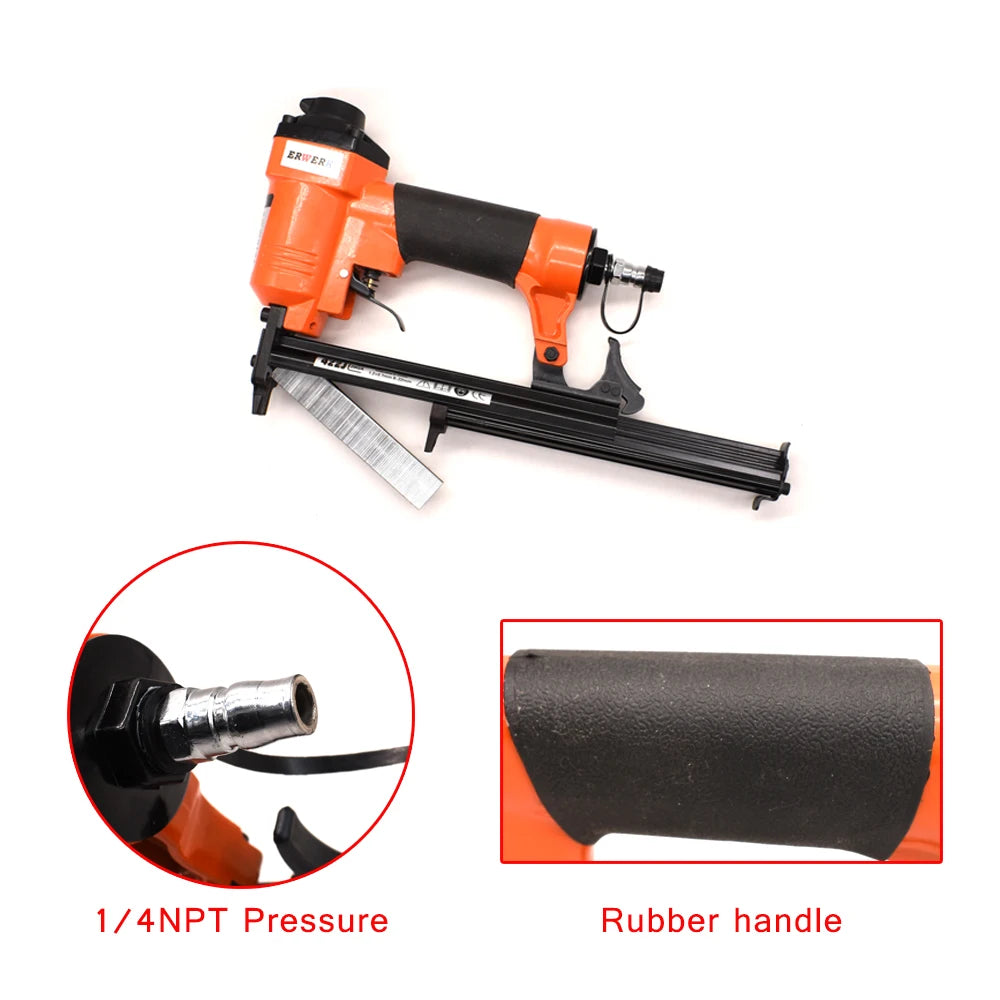

2.Air inlet (Optional for thread size):NPT1/4"
3.Nail capatcity:100pcs
4.Nail range :410J,413J,416J,419,422J
5.Recommended operating pressure range :3.5-5bar(50-85psi)
6.List:
422J nail gun*1
Hexagonal wrench*2
Instruction manual*1
422J Staples*300pcs

TOOL OPERATION

Protect your eyes and ears. Wear safety glasses...
Check and replace any damaged or worn components on the too...
1. Add a few drops of UNOCAL RX22 or 3-in-1 oil into the air inlet .
2.Install a quick connect fitting to the tool .
3. Connect the tool to an air compressor using a 3/8" I.D. hose. Make sure the magazine
must be empty of all fasteners and the hose has a rated working pressure exceeding 200psi (13.8 bar) and a female quick coupler.
4. Regulate the air pressure to obtain 62 psi(4.1bar) at the tool. Check the operation of the safety yoke mechanism following the instructions in this manual.
5. Insert fasteners into your tool following the instructions of loading the tool.
6. Reconnect the hose to the tool.
7. Test for proper fastener penetration by driving fasteners into a piece of wood. If the
fasteners do not achieve the desired penetration, regulate the air pressure to a highersetting until the desired penetration is achieved. Do not exceed 7 bar(100psi) at the tool
